Subaru BIU Clone | Body Integrated Unit Clone service 2005 to 2022
$250.00
Can you clone a Subaru BIU (Body Integrated Unit)?
Yes. Karman Auto clones Subaru BIU (Body Integrated Unit) modules nationwide by mail-in across Legacy, Outback, Forester, Impreza, WRX, STI, Crosstrek, Ascent, BRZ, and Tribeca from 2005-2022. We read VIN, mileage, immobilizer pairing, key data, and configuration coding from your original BIU and write it to a matching donor — returns 100% plug-and-play. No SSM4, no Subaru Select Monitor, no dealer programming. BBB A+ Rated, 27 years bench-level work since 1999.
What is the Subaru BIU (Body Integrated Unit)?
The Subaru BIU (Body Integrated Unit) is the central body-electronics computer in Subaru vehicles — the equivalent of what other manufacturers call a Body Control Module (BCM). It manages power windows, central locking, exterior and interior lighting, wipers, keyless entry, and the immobilizer / anti-theft system. The BIU is the central hub of Subaru’s anti-theft chain, communicating directly with your transponder keys, the ECU (engine control unit), and the combination meter (dash cluster) to allow the car to start.

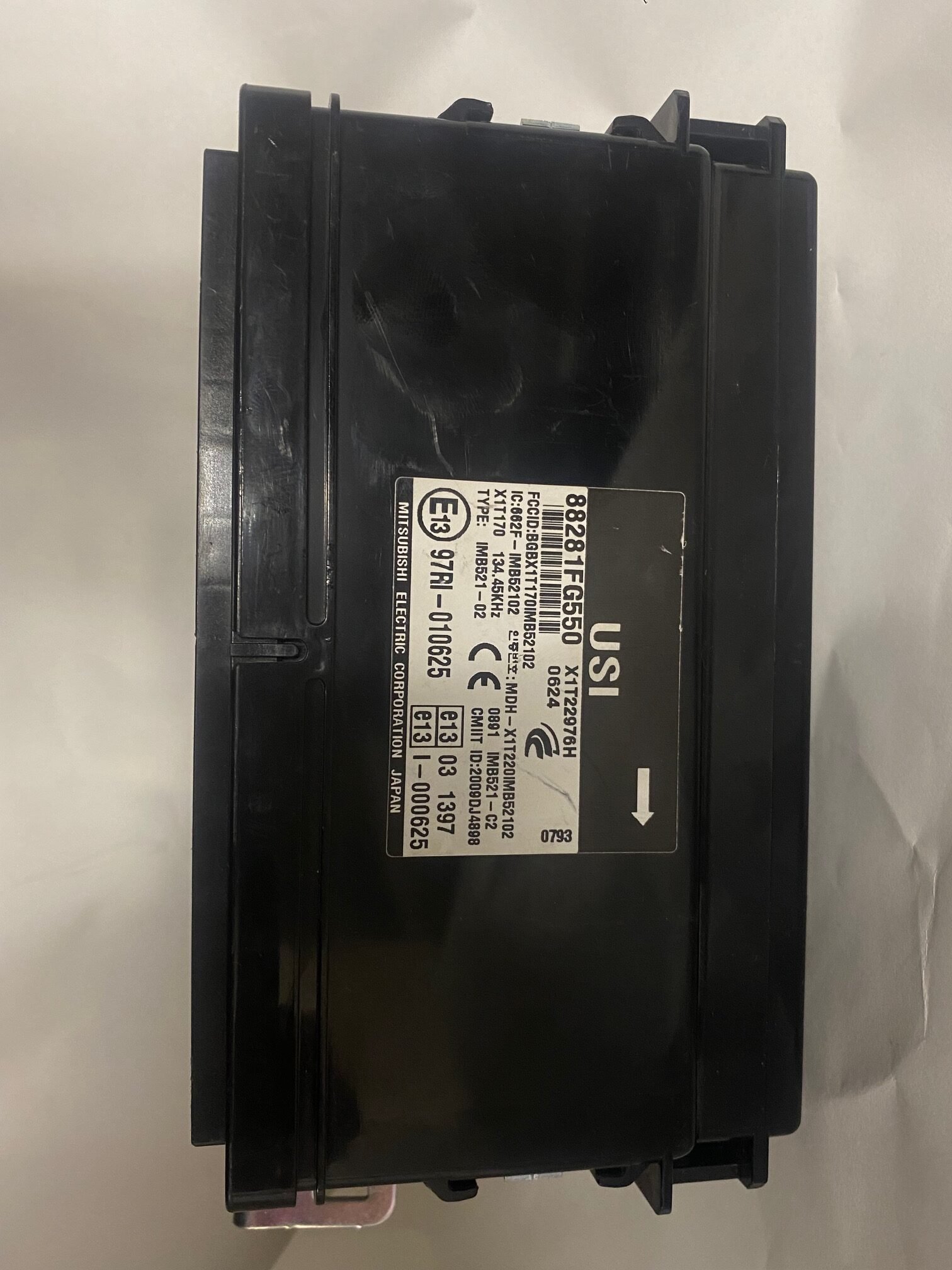

The BIU is located behind the passenger-side dash panel on most 2005-2022 Subaru models. It’s a sealed module roughly the size of a deck of cards with a multi-pin connector on one face.
Common Subaru BIU failure symptoms
- Engine won’t start — security light flashes, immobilizer fault
- Power windows stop working — front, rear, or all
- Central locking fails — doors won’t lock or unlock via key fob
- Interior dome / map lights stay on or won’t turn off
- Keyless entry remote stops responding
- Wipers run continuously or fail to run
- Battery drain — BIU stuck “awake” pulling current overnight
- “Check Engine” + “Cruise” + “Brake” lights all illuminated together
- Cluster goes dark intermittently
- Headlights / tail lights / turn signals fail
- Subaru fault codes B1606, B1607, B1608, U0140 (BIU / body integrated)
What causes Subaru BIU failures?
- Water damage — leaks from windshield seals, sunroof drains, or AC condensate reach the BIU under the dash. Outback/Forester models are particularly prone due to higher water exposure in winter conditions
- Battery jump-start surges — voltage spikes from jump-starts can damage the BIU’s internal microcontroller or EEPROM
- Low battery voltage during cranking — repeated cranking with a weak battery can corrupt the BIU’s EEPROM data over time
- Accident damage — collision impact can break solder joints on the BIU circuit board
- Failed dealer reflash — interrupted reprogramming attempts during recall service can leave the BIU in a corrupted state
- Age-related capacitor failure — common on 2008-2014 BIUs
Supported Subaru models and year ranges
- Legacy — 2005-2022 (BL, BM, BN chassis)
- Outback — 2005-2022 (BP, BR, BS chassis)
- Forester — 2005-2022 (SG, SH, SJ, SK chassis)
- Impreza — 2005-2022 (GD, GE, GH, GR, GP chassis including WRX, STI)
- Crosstrek / XV — 2013-2022
- Ascent — 2019-2022
- BRZ — 2013-2022
- Tribeca — 2006-2014
If you don’t see your specific model/year listed, email us the VIN and we’ll confirm coverage before you ship.
BIU clone vs IMMO Sync — which do I need?
Both are mail-in bench services but solve different problems:
- BIU Clone (this page) — your BIU is failing or damaged. You source a matching used donor BIU with the same part number. We clone your VIN, mileage, key data, and immobilizer pairing from your old BIU to the donor. Donor returns Plug-and-Play, existing keys keep working.
- BIU IMMO Sync (separate service) — your BIU is fine but you need to virginize it (reset to factory blank state) to re-pair with new keys, a different ECU, or a different combination meter. Used when components from multiple cars are being combined.
If you’re unsure which you need, ship us the module with a note describing the situation and we’ll diagnose and recommend the right path before any work is done.
No Subaru SSM, dealer programming, or coding required after install
Once we clone your data onto the donor BIU, the replacement is fully matched to your VIN, immobilizer, and configuration. You install it the same way you’d install any other Subaru module. There is no dealer-side step. No Subaru SSM4 (Select Monitor 4). No dealer J2534 reflash. No transponder programming. Your existing keys keep working — the immobilizer pairing is preserved in the clone.
What to send with your Subaru BIU clone order
- Your original (failed) Subaru BIU — labeled “ORIGINAL”
- A matching donor BIU with the exact same Subaru part number on the case label — labeled “DONOR.” Part numbers are formatted like 88281-XX###. Mismatched part numbers cannot be cloned together.
- A note with your VIN, current vehicle mileage (from dashboard), and contact phone or email
If you’re unsure whether your donor part number matches, email a photo of both module labels before shipping and we’ll confirm compatibility first.
Karman Auto Subaru BIU service — frequently asked questions
Can you clone any Subaru BIU (Body Integrated Unit)?
Yes. Karman Auto clones every Subaru BIU from 2005 through 2024 — Legacy, Outback, Impreza, WRX, STI, Forester, Crosstrek, BRZ, Tribeca, and Ascent. We have been doing bench-level Subaru electronics since 1999 — 27 years, longer than any active US competitor. BBB A+ accredited.
What exactly does a Subaru BIU clone copy?
We read the full flash and EEPROM from your original BIU — VIN, mileage, immobilizer key data, coding, country/market flags, and security access keys — and write that data into a matching donor BIU. The donor becomes your original module electronically. No SSM-IV, no dealer step, no programming required after install.
How long does a Subaru BIU clone take?
Typical bench turnaround is 24-48 hours from when we receive both modules. We ship USPS Priority back the same day cloning is complete — most customers see 5-7 days door to door. 27 years of refining this exact process means there is no faster bench service in the US.
Will my Subaru keys still work after the BIU clone?
Yes. The Subaru immobilizer pairing data is stored inside the BIU EEPROM. We copy that data byte-for-byte to the donor, so every key that started the car before the clone keeps starting it after. No relearn, no programming, no dealer trip — proven across 27 years of bench-level work.
Do I need a donor Subaru BIU or just send my failed one?
BIU cloning requires a donor with the same part number as your original. If you do not have a donor we can usually source one — message us with your part number first. We have been sourcing OEM Subaru donor modules since 1999.
Why does the donor Subaru BIU need to match the part number?
The internal flash layout and EEPROM map are tied to the BIU part number. A donor with a different part number has a different memory map and cannot accept the cloned data correctly. Verify the part number on the white sticker before shipping. We have refused mismatched modules for 27 years specifically to keep customers from no-start failures.
What are the symptoms of a failing Subaru BIU?
Common BIU failure signs include immobilizer light blinking with key in ignition, intermittent no-crank no-start, power locks not working, interior lights stuck on, dash warning lights illuminated, CAN communication errors, and fault codes B1606, B1607, B1608, B1611, U0140, U0073. We see these symptoms daily — 27 years of pattern recognition behind every diagnosis.
What causes Subaru BIU failure?
The leading cause is water intrusion — Subaru BIUs sit behind the passenger or driver dash and a leaking windshield, sunroof drain, or AC evaporator floods the module. Other causes include jump-start voltage spikes, alternator over-voltage, aftermarket remote-start installs done wrong, internal capacitor degradation on 2008-2014 modules, and accident damage. 27 years of failure analysis informs every repair.
Does the Subaru BIU clone require SSM-IV, dealer programming, or coding?
No. The whole point of cloning is that no dealer step is needed. Programming a new Subaru BIU the conventional way requires Subaru SSM-IV plus a Subaru Tech Info subscription and security access permission — costly and slow. Karman Auto bypasses that entirely: install our cloned BIU and the car starts.
Where is the BIU located on a Subaru?
On most Subaru chassis the BIU is mounted behind the passenger-side dash, accessible by pulling the glovebox or the lower passenger trim. On some Outback and Legacy models it is behind the driver kick panel. WRX and STI use the same passenger-side mounting. We provide pull instructions for any model on request — 27 years of hands-on across every Subaru chassis.
Can you clone a water-damaged Subaru BIU that will not communicate?
Yes. Even when the BIU is bricked at the CAN/K-line level we can still read the EEPROM and flash directly at chip level on the bench. That is how we recover VIN, mileage, immobilizer data, and coding from dead Subaru BIUs that no Subaru scan tool can talk to. 27 years of bench-level chip work makes this routine.
Will my odometer change after the BIU clone?
No. We transfer your exact mileage from the original BIU EEPROM to the donor. The dashboard reading stays the same. Karman Auto does not roll back or alter mileage under any circumstance — same policy since 1999.
Does the Subaru BIU clone work on WRX, STI, and BRZ?
Yes. WRX, STI, and BRZ all share the same BIU architecture as the equivalent Impreza or Legacy chassis. Same clone process, same 24-48 hour bench turnaround, same immobilizer preservation. 27 years of Subaru bench work covers every model the factory has shipped.
Is Subaru BIU cloning legal?
Yes. Module cloning for repair purposes is fully legal in all 50 states. We preserve your original VIN and mileage exactly — no alteration, no rollback. We have operated under BBB A+ accreditation for the last 17 years and have been in business 27 years without a single compliance issue.
Why choose Karman Auto over forum DIY threads, dismantler swaps, or other Subaru BIU shops?
We have been doing bench-level automotive electronics since 1999 — 27 years, longer than any active US Subaru BIU service. BBB A+ accredited. 5.0/304 customer reviews. Free YouTube tutorials on Vehix411 (5,168+ videos covering this exact work). Lifetime warranty on every BIU clone. 24-48 hour bench turnaround. Forum threads cannot warranty work; dismantler BIUs come unprogrammed and lock your keys out. We have outlasted every competitor that tried this work.
27 years bench-level experience — proven on YouTube
Karman Auto has been cloning Subaru BIUs, ECUs, combination meters, and immobilizer modules at the bench level for 27 years. Our VEHIX411 YouTube channel documents real bench work on real customer modules — proof of how long we’ve been doing this. When you ship your Subaru BIU to Karman Auto, you’re sending it to the same hands other shops learn from.
Subaru BIU (Body Integrated Unit) Clone Service 2005 to 2022
This service is for Subaru BIU / Body Integrated Unit clone (also known as Body Control Module – BCM).
Our service covers most Subaru models from 2005 to 2022. If you replaced your Subaru BIU and your car won’t start, we can help.
How the Service Works:

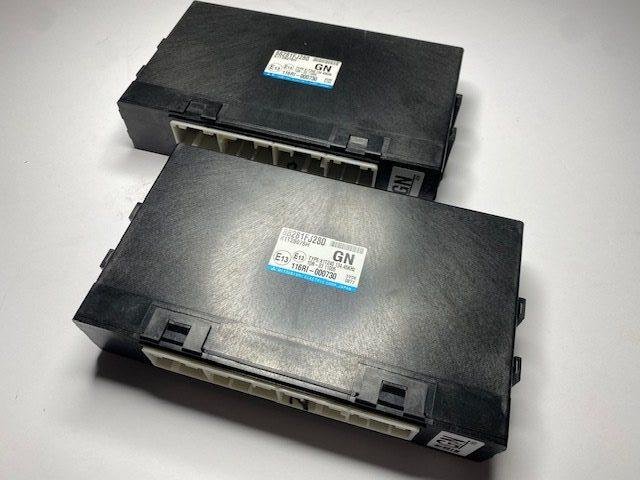

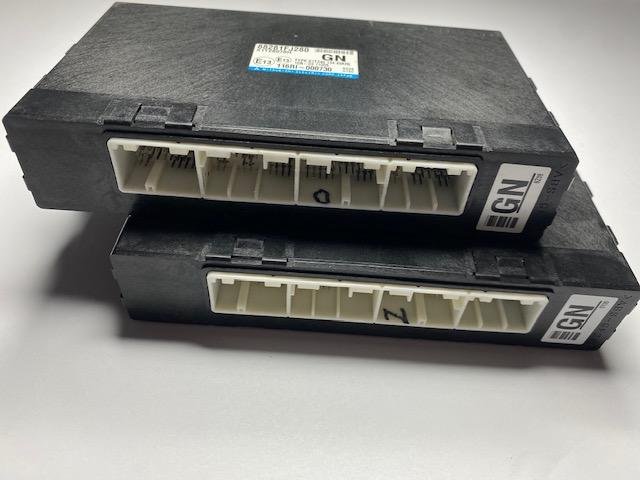

You will need to ship us both BIUs from your Subaru – the original and a donor with the exact same part number. Our technicians will:
- Copy your keys, immobilizer info, and coding from the original BIU
- Paste all data to a good donor BIU
- If your car was flooded or your BIU is damaged, we can read original data and transfer to donor unit
- Fix power windows, windshield wiper, or other body component issues caused by BIU failure
Common Reasons Subaru Owners Replace or Clone BIU:
- Car won’t start due to immobilizer or key synchronization errors
- Power windows, windshield wipers, or door locks malfunctioning
- Interior lights or dashboard components not functioning
- Flooded or water-damaged BIU causing electrical issues
- Error codes such as P0641, U0155, U0140, B2781, B2799
- Aftermarket ECU or BIU replacement requiring key & coding transfer
How to Send Your BIUs:
- Add the service to your cart and pay
- Print your receipt or order number
- Mark both units: Old (original) and New (donor)
- Ship both units with the receipt/order number to:
KARMAN AUTO
SEO Keywords:
Subaru BCM clone, Subaru BIU clone, Subaru Body Integrated Unit clone, Subaru BIU programming, Subaru Body Control Module clone, Subaru BIU key transfer, Subaru BIU mail-in service, Subaru BCM programming, Subaru BIU data transfer
TS: 24C02 Mitsubishi 24c01
Watch how our bench service works
How our bench cloning process works — demonstration on another vehicle ECU. The same principles apply to your Subaru MODULE.
Related mail-in programming services: Subaru ECU Clone Service (2000–2018) · Subaru ECU VIN Programming · Subaru BIU Key Programming (All Keys Lost 2012–2018) · Subaru DENSO SH72531 IMMO Off
See our full Subaru ECU service guide: Subaru ECU Programming & Clone Service — full decision guide covers when to use ECU clone vs IMMO Sync vs VIN programming, and links to every specific Subaru service we offer.
