VW Beetle Cluster Clone Service up to 2005
$200.00
Can you clone a VW Beetle Cluster (up to 2005)?
Yes. Karman Auto clones VW Beetle (New Beetle, 1C/9C chassis) instrument clusters nationwide by mail-in for 1998-2005 models. We transfer VIN, exact mileage, immobilizer pairing data, and component coding from your original cluster to a matching donor — returns 100% plug-and-play. No VAG-COM/VCDS coding, no dealer programming, no SKC/PIN required. BBB A+ Rated, 27 years bench-level work since 1999.

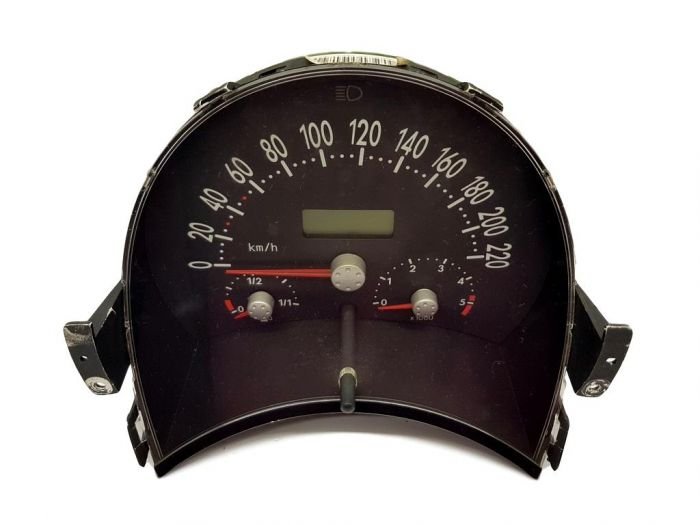

What is the VW Beetle Instrument Cluster?
The VW Beetle cluster (Magneti Marelli or VDO depending on year) is the digital dashboard module displaying speedometer, tachometer, fuel/temperature gauges, odometer mileage, and warning lights. On 1998-2005 New Beetle (1C/9C chassis), the cluster is also part of the VAG Immobilizer 2 (or Immo 3 on later 2003+) chain, communicating with the ECU and key reader coil to allow engine start. It stores VIN, exact mileage, immobilizer pairing, and country/language coding.
Common VW Beetle Cluster failure symptoms
- Cluster goes completely dark — no display, no warning lights, no gauges
- Pixel failure on multifunction display (very common on 1998-2003 Beetles — pixels drop out row by row)
- Fuel and/or temperature gauges stuck at zero or pinned high
- Mileage display shows dashes (“——“) or random characters
- Speedometer reads zero while driving
- Tachometer stuck or erratic
- Backlighting fails — gauges work but unreadable at night
- Immobilizer warning light stays on — engine cranks but won’t start
- Cluster doesn’t communicate with VCDS or scan tool (no connection to instrument cluster ECU)
- Fault codes 01304, 01314, 01316 (cluster / immobilizer communication)
What causes VW Beetle Cluster failures?
- Pixel failure (LCD ribbon cable) — the #1 issue on 1998-2003 Beetles. The flat ribbon connecting the LCD to the cluster board fails over time, causing rows of pixels to drop out
- Capacitor failure — electrolytic capacitors leak and dry out on 1998-2005 clusters
- Solder joint fatigue — vibration cracks solder joints, especially around the stepper motors driving the gauge needles
- EEPROM corruption — low-voltage cranking events corrupt mileage or immobilizer data
- Water damage — leaks from windshield seals reach the cluster on Beetles parked outdoors
- Failed dealer reflash — interrupted coding during service can corrupt cluster firmware
VW Beetle Cluster repair vs Clone — which do I need?
Two mail-in bench services depending on the failure:
- Cluster repair (LCD pixel / capacitor fix) — your cluster has pixel failure or aged caps but the hardware is otherwise fine. We replace the LCD ribbon and/or capacitors and return your original cluster fully working.
- Cluster clone (donor module) — your cluster is physically damaged beyond repair. You source a matching used donor cluster (same VW part number). We read your VIN/coding/mileage from your old cluster (even non-working) and write it to the donor. Donor returns Plug-and-Play.
If you’re not sure, ship us the module and we’ll test it on the bench and recommend the right path before any work is done.
Supported VW Beetle models and year ranges
- VW New Beetle (1C chassis) — 1998-2005 hatchback (1.8T, 2.0L, 1.9L TDI, 2.5L 5-cyl)
- VW New Beetle Convertible (1Y chassis) — 2003-2005
Earlier classic air-cooled Beetles do not have an electronic cluster — those use mechanical gauges and don’t need cloning.
No VAG-COM / VCDS coding required after install
Once we clone your data onto the donor cluster, the replacement carries your VIN, mileage, immobilizer pairing, and coding. You install it directly in your car. There is no dealer-side step. No VCDS coding. No SKC / PIN. No login token. Your existing keys keep working — the immobilizer chain is preserved.
What to send with your VW Beetle Cluster clone order
- Your original (failed) VW Beetle Cluster — labeled “ORIGINAL”
- For clone orders: a matching donor Cluster with the exact same VW part number on the back-side label — labeled “DONOR.” Mismatched part numbers cannot be cloned together.
- A note with your VIN, current vehicle mileage (from dashboard if readable), and contact phone or email
VW Beetle Cluster service — frequently asked questions
Q: How long does the mail-in cluster service take?
A: Typical bench turnaround is 24-48 hours from when we receive the module. We ship back the same day work is complete.
Q: Will the mileage be preserved after the clone or repair?
A: Yes. We transfer your exact original mileage. The dashboard reading remains the same — we never roll back or alter mileage.
Q: Will my Beetle keys still work after the cluster work?
A: Yes. The immobilizer pairing data is preserved during cloning or repair, so your existing keys continue to work without re-programming.
Q: My multifunction display has missing pixel rows. Can you fix just that?
A: Yes. The pixel failure is the #1 New Beetle cluster issue. We replace the LCD ribbon cable to restore the display. This is the repair (not clone) path.
Q: Will the cluster work on a TDI as well as gas engine?
A: Yes. The cluster doesn’t care about engine type — it cares about chassis and year. Both 1.9L TDI and gas variants (1.8T, 2.0L, 2.5L) use the same cluster family.
Q: Why does the donor cluster need the same part number?
A: The internal flash and EEPROM layout is tied to the cluster part number. A donor with a different part number has a different memory map and cannot accept the cloned data correctly.
27 years bench-level experience — proven on YouTube
Karman Auto has been cloning and repairing VW, Audi, and Volkswagen Group instrument clusters at the bench level for 27 years. Our VEHIX411 YouTube channel documents real cluster bench work — proof of how long we’ve been doing this. When you ship your VW Beetle cluster to Karman Auto, you’re sending it to the same hands other shops learn from.
Introducing Our VW Beetle Cluster Clone Service
At Karman Auto, we offer a reliable VW Beetle dash or cluster clone service. Our team of experts will read the original cluster key, security immo, VIN, and mileage from your current dashboard and transfer them to the donor cluster with the same part number provided by you.
Simple and User-Friendly Process
Using our service is straightforward. Simply add the service to your cart, make the payment, and mark the old cluster as ‘original’ and the new cluster as ‘donor’. Then, mail both clusters along with the receipt to Karman Auto. We will handle the cloning process and ship your clusters back within 24 hours.
Why Choose Our Service?
Our VW Beetle cluster clone service is designed for convenience and efficiency. By choosing us, you benefit from:
- Expert handling of your VW Beetle’s dashboard cluster
- Accurate transfer of key security immo, VIN, and mileage
- Quick 24-hour turnaround time
- Easy-to-follow instructions and user-friendly service
Get Started Today
Don’t let dashboard issues disrupt your driving experience. Trust Karman Auto’s professional VW Beetle cluster clone service to get your dashboard back to perfect working condition. Add to cart, follow the simple steps, and enjoy a hassle-free process. Your satisfaction is our priority.
Watch how our bench service works
Watch how our Volkswagen CLUSTER clone service works — bench read/write demo from our shop.
VW Beetle cluster clone — extended frequently asked questions
Can you clone a New Beetle instrument cluster?
Yes. Karman Auto clones every New Beetle (1C and 9C chassis) instrument cluster from 1998 through 2005 — Beetle GLS, Turbo S, TDI, and convertible variants. Magneti Marelli and VDO units. 27 years of bench-level VW electronics — longer than any active US Beetle cluster service. BBB A+ accredited.
What does the VW Beetle cluster clone copy?
We read the full flash and EEPROM from your original Beetle cluster — VIN, exact odometer mileage, immobilizer (VAG Immo 2 or Immo 3) pairing data, coding, country/market settings, and language — and write that data into a matching donor cluster. The donor becomes your original module electronically.
How long does the Beetle cluster clone take?
Typical bench turnaround is 24-48 hours from when we receive both clusters. We ship USPS Priority the same day cloning is complete. 27 years of refining this process.
Will my Beetle keys still work after the cluster clone?
Yes. The VAG Immo 2 and Immo 3 immobilizer is partly stored in the cluster EEPROM (paired with the ECU). We copy that data byte-for-byte to the donor cluster so your keys keep working. No re-pair, no programming, no dealer step.
Does the Beetle cluster clone require VAG-COM, VCDS, or VW dealer programming?
No. Karman Auto cloning bypasses all dealer and aftermarket programming. The cloned cluster arrives pre-coded as your original — install it and the car starts.
Do I need a donor Beetle cluster or just send my failed one?
Cluster cloning requires a donor with the same part number as your original. If you do not have one we can usually source one — message us with your part number first. 27 years of sourcing OEM VW donor clusters.
Why does the donor Beetle cluster need the exact same part number?
The internal flash and EEPROM layout are tied to the cluster part number. A donor with a different number has a different memory map and cannot accept the cloned data correctly. The number is on the white sticker — verify before shipping. We have refused mismatched cluster jobs for 27 years.
What are the symptoms of a failing New Beetle cluster?
Common Beetle cluster failure signs include LCD pixels missing (the dreaded “dead pixel rows”), gauges stuck or jumping, mileage going to dashes, backlight fading, fault codes 01304/01314/01316 (cluster internal fault), immobilizer light flashing with key in ignition, and intermittent no-start tied to cluster faults. 27 years of pattern recognition.
What causes Beetle cluster failure?
The leading cause on New Beetle clusters is pixel ribbon cable degradation — the heat-bonded ribbon connecting the LCD to the cluster board breaks down and rows of pixels go dark. Other causes include internal capacitor degradation, jump-start over-voltage, and immobilizer chip failure. 27 years of bench-level cluster failure analysis.
Can you fix the dead pixel rows on a Beetle cluster?
Yes. We replace the pixel ribbon and/or LCD on the bench. Send your original cluster — we open it, install a new ribbon and LCD, and return it. This is one of the most requested Beetle services. 27 years of LCD ribbon work across the VAG cluster family.
Will the odometer change after the Beetle cluster clone?
No. We transfer your exact mileage from the original cluster EEPROM to the donor. The dashboard reading stays the same. Karman Auto does not roll back or alter mileage under any circumstance — same policy since 1999.
Can you clone a totally dead Beetle cluster that will not power on?

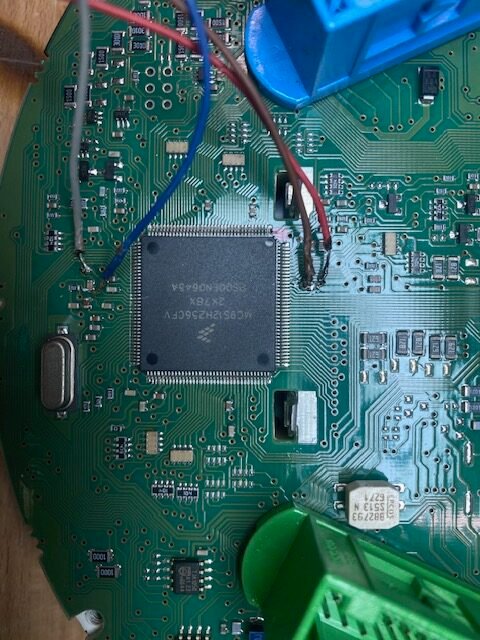

Yes. Even when the cluster will not power up in the car we can still read the EEPROM directly at chip level on the bench. That is how we recover VIN, mileage, and immobilizer data from completely dead Beetle clusters. 27 years of chip-level work.
Does the Beetle cluster service work on convertible models too?
Yes. New Beetle convertible (2003-2010) uses the same 1C/9C cluster architecture. Same clone process, same 24-48 hour bench turnaround, same lifetime warranty. 27 years across every Beetle chassis.
Is New Beetle cluster cloning legal?
Yes. Module cloning for repair purposes is fully legal in all 50 states. We preserve your original VIN and mileage exactly — no alteration, no rollback. We have operated under BBB A+ accreditation for the last 17 years and have been in business 27 years without a single compliance issue.
Why choose Karman Auto over Module Experts, Circuit Board Medics, or other VW Beetle cluster services?
We have been doing bench-level automotive electronics since 1999 — 27 years, longer than any active US VW Beetle cluster competitor. BBB A+ accredited. 5.0/304 customer reviews. Free YouTube tutorials on Vehix411 (5,168+ videos). Lifetime warranty on every cluster clone. 24-48 hour bench turnaround. We have outlasted every competitor that tried this work.
