2020-2024 Subaru Outback Airbag Module Crash Reset Service — Mail-In, 24-Hour Turnaround
The 2020-2024 Subaru Outback (sixth generation, chassis BT) uses an updated Continental airbag control module that stores hard crash codes and an internal lockout at the EEPROM level. Subaru Select Monitor 4 (SSM4) and its dealer-only Starlink coding tool both fail to clear these codes. A new VIN-coded module from Subaru costs $900-1,400 plus dealer programming. We bench-read the EEPROM directly, wipe every crash flag and lockout, and ship it back ready to bolt in.
Models This Service Covers
2020 Subaru Outback, 2021 Subaru Outback, 2022 Subaru Outback, 2023 Subaru Outback, 2024 Subaru Outback — all trims (Base, Premium, Limited, Onyx Edition XT, Touring XT, Wilderness).
Common Part Numbers We Reset
2020-2024 Outback airbag modules use the Subaru 98221-xxxxx part family:
- 98221-AN000 (2020 Outback 2.5i — all trims)
- 98221-AN010 (2020-2021 Outback XT turbo)
- 98221-AN020 (2022 Outback Wilderness)
- 98221-AN030 (2022-2023 Outback all trims)
- 98221-AN040 (2023-2024 Outback Onyx Edition XT)
- 98221-AN050 (2024 Outback all trims)
- 98221-AN060 (2024 Outback Wilderness)
- 98221-AN001 (2020 Outback Touring XT)
- 98221-AN011 (2021 Outback Limited XT)
- 98221-AN021 (2022 Outback Premium)

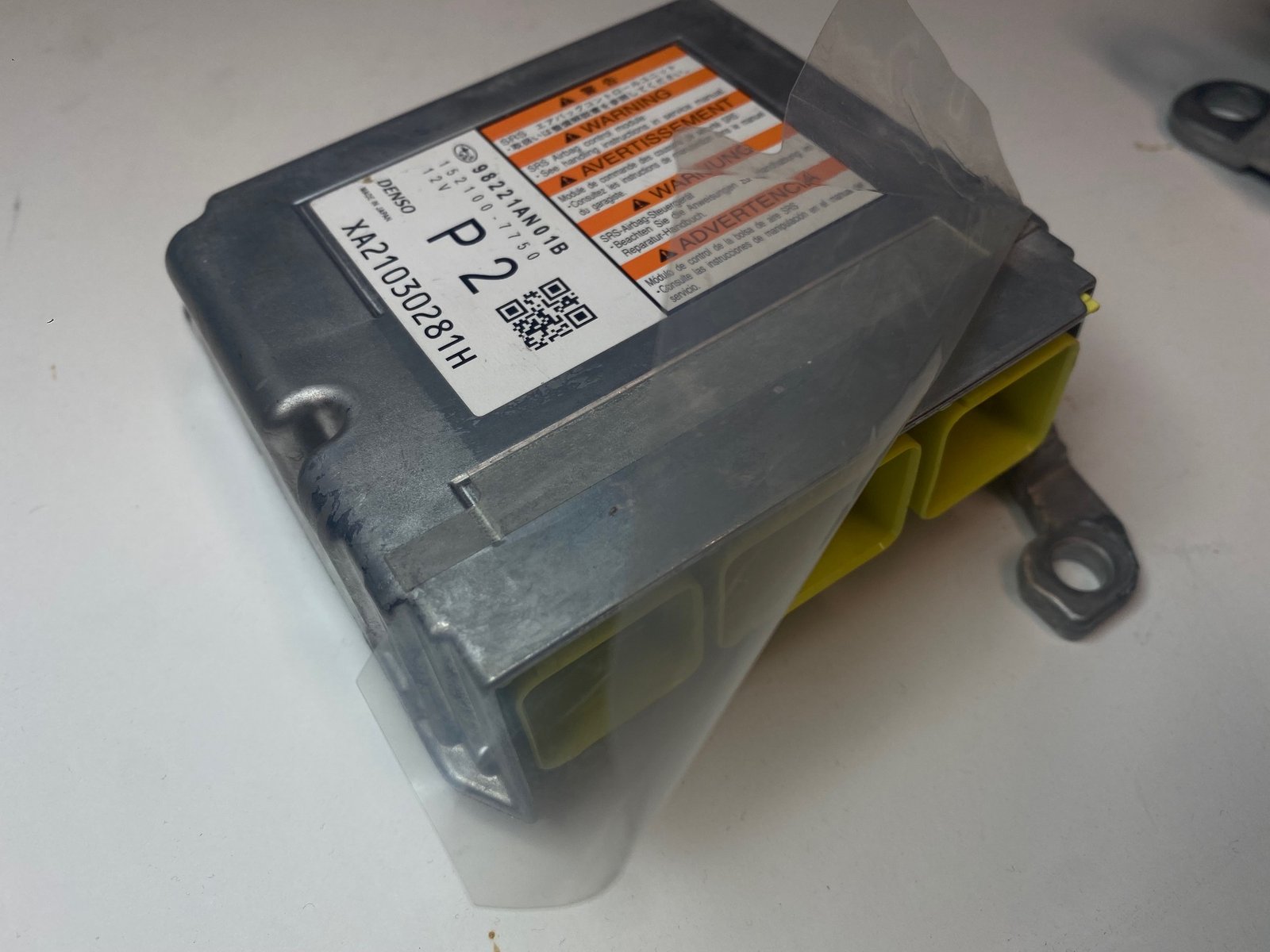

If your part number is not on this list, send a photo of the label on the airbag module and we will confirm within the hour — we process the entire Subaru Outback (2020-2024) airbag module family plus Continental, Bosch, Siemens VDO, TRW, and Denso variants.
How Our Crash Reset Works
- You email us the label first. Snap a photo of the airbag module part number sticker and email it to us. We confirm your unit is supported and send the prepaid shipping label.
- You remove the module from the car. The module is under the center console, bolted to the transmission tunnel between the front seats — accessed by removing the shifter surround trim and center console side panels. Disconnect the battery for at least 10 minutes first, then unbolt and unplug the module.
- Mail it to us. Wrap in bubble wrap or anti-static foam, drop in a padded envelope or small box, and use the label we sent. Insurance is included. Most orders reach our bench in 1-2 business days.
- We bench-read the EEPROM. We pull your module’s EEPROM directly on the bench — no soldering, no damage. We inspect for hard-coded deployment flags, blown squib resistors, and crash history counters.
- We clear the crash data and lockout. We wipe every deployment flag, crash log entry, event data recorder, and the internal lock byte that prevents dealer tools from resetting the module. We write the EEPROM clean at the bit level so the codes never come back.
- Bench verification. Before we ship it back, we bench-test the module with a simulator to confirm all deployment circuits read OPEN, the internal lockout is cleared, and the module communicates normally over CAN/K-Line.
- We ship it back. 24-hour bench turnaround, same-day return shipping (USPS Priority or UPS 2-Day, tracked). Plug-and-play — bolt it back in, reconnect the battery, and the airbag light goes out on the first key-on. No dealer scan tool required.
Mail-In Instructions
Ship your airbag module to:
Karman Auto — Airbag Reset Service
(address provided on your receipt after payment — you cover shipping in, and return shipping is paid at checkout on our site)
Please include a note with your name, phone number, and order number inside the package. We do not need the airbag itself — only the SRS / SDM / ORC / RCM / ACSM electronic control module (the small metal or plastic box with a connector, usually 4 to 8 inches long). Do not ship any undeployed airbags, pyrotechnic parts, or seatbelt pretensioners — those are hazmat and cannot legally go through the mail. Just the control module.
Turnaround, Warranty, and Pricing
Flat-rate service, no hidden fees. 24-hour bench turnaround from the moment your module arrives at our shop. 12-month warranty backed by over 25 years of crash-reset experience. We save the before-and-after EEPROM files on every module in-house so we can always verify the reset if any question comes up later.
Questions about your specific part number, your car’s module location, or whether your situation is covered? Contact us before you ship — we would rather answer a part number question up front than have your module sit on the bench waiting for info.
Frequently Asked Questions
How long does the Subaru Outback (2020-2024) airbag module reset take?
24 hours on the bench from the moment your Subaru Outback (2020-2024) module arrives at our shop. Most customers are back on the road within 3-5 business days end-to-end, including shipping both ways.
Will the airbag light stay off after you reset my Subaru Outback (2020-2024) module?
Yes. We wipe every crash flag, deployment counter, and internal lockout byte at the EEPROM level, then bench-verify the module before it ships. Plug it back in, reconnect the battery, and the airbag light goes out on the first key-on — no dealer scan tool required. Backed by our 12-month warranty and 25+ years of crash-reset experience.
Do I need to send the airbags too, or just the Subaru Outback (2020-2024) control module?
Just the control module — the small SRS / SDM / ORC / RCM / ACSM electronic box. Do not ship any undeployed airbags, pyrotechnic parts, or seatbelt pretensioners. Those are hazmat and cannot legally go through the mail.
How do I know if my Subaru Outback (2020-2024) part number is supported?
Email us a photo of the label on your Subaru Outback (2020-2024) airbag module before you ship. We confirm support and part coverage within the hour during business days. If we cannot reset your specific unit, you will not be charged.
Related Airbag Reset Services
Watch how our bench service works
Bench crash-reset demonstration. Same process applies to your 2020-2024 Outback airbag module.




Bryan Coats (verified owner) –
Good just as you said to re zero the seat and it worked perfectly. Thanks Bryan also the Thinkcar scanner will not work on these cars.
