VW Airbag Module Reset — 65535 & Crash Repair Service, All Models 2003–2026

Dan Karman has been repairing automotive electronics since 1999. Karmanauto launched online in 2006 and has reset tens of thousands of airbag modules worldwide — including thousands of VW airbag control units across Golf, Jetta, Passat, Tiguan, Atlas, Arteon, Beetle, Touareg, and the full ID. EV lineup. One page, two problems: post-crash lockout after a deployment (VCDS, ODIS, OBDeleven, VAS, and VCP will not clear it) and fault code 65535 Internal Control Module Memory Error — the VW “dead controller” latch. Same flat bench-reset price for both. See our reset work on YouTube (@vehix411). Page updated April 2026.

Jump to a section

What is a VW airbag control unit bench reset?

Every VW from 2003 to present uses an airbag control unit (J234 in VAG wiring diagrams — also called the ACM, SRS module, or “Airbag ECU”) that monitors impact and occupant sensors, fires the pretensioners and airbag squibs when needed, and stores crash events in EEPROM afterward. Two different faults land VW modules on our bench — both locked out of normal scan-tool clearing, both recoverable via direct EEPROM work. Crash lockout stores deployment data and latches Component Protection; 65535 latches when the module thinks it may be internally defective. In both cases VCDS (Ross-Tech), ODIS, OBDeleven, VCP, VAS 5054, and generic OBD tools cannot erase the fault. A bench reset connects directly to the module’s EEPROM, erases the crash block and/or the 65535 internal-error latch, recomputes checksums, and leaves VIN, long coding, adaptations, and Component Protection untouched. Plug it back in, key on, airbag light goes out.

Coverage

We reset every VW airbag module from 2003 to present — Golf / GTI / R / Alltrack / Sportwagen (Mk5, Mk6, Mk7, Mk8), Jetta / GLI (Mk5, Mk6, Mk7), Passat (B6, B7, B8, B9), Passat CC & Arteon, Tiguan (first gen 5N, second gen AD1 / MQB), Taos, Atlas & Atlas Cross Sport, Touareg (Mk1 7L, Mk2 7P, Mk3 CR), Amarok, Routan, Eos, Beetle & Beetle Convertible, Rabbit, Fox, Polo, Virtus, and the full ID. EV lineup (ID.3, ID.4, ID.5, ID.7, ID. Buzz). All trims, all petrol/diesel/hybrid/EV drivelines, all regional variants (European, North American, Mexican, Brazilian, Asian-market). If it’s a VW with a factory airbag control unit, we reset it.

How it works — 3 steps

After a crash — SRS deployment lockout

When a VW is in a collision severe enough to deploy an airbag, pretensioner, or side curtain, the airbag control unit writes hard crash flags, the full event-data record, and a Component Protection (CP) lockout into EEPROM. After that point, VCDS, ODIS, OBDeleven, VCP, VAS 5052/5054, and generic OBD scanners cannot clear the crash data — VW’s service procedure is module replacement with a dealer SVM/GeKo session to re-pair Component Protection, which runs $700–$1,400 all-in. You’ll typically see:

• Red airbag warning lamp solid on (not flashing)
• VCDS / ODIS / OBDeleven scan shows one or more igniter-resistance, side-airbag, pretensioner, or crash-sensor faults that will not clear
• Virtual Cockpit / MIB / Composition Media display may show “Airbag Fault” or “SRS — Service Now”
• Belt warning chime stays on longer than normal
• Crash event timestamp visible in the “crash data stored” block inside the module

Our bench reset removes the crash-history block and the deployment lockout so the module re-arms with the remaining intact circuits. VIN, long coding, Component Protection, and adaptations stay untouched.

65535 — Internal Control Module Memory Error

Fault code 65535 (Internal Control Module Memory Error) is the VW “dead controller” latch — the module has decided it may be faulty internally and refuses to complete its self-test. VCDS, ODIS, OBDeleven, VCP, and every other scan tool will see the code but cannot clear it, because VW’s clearing procedure requires the module to respond in a healthy state first. Two root causes:

• Software-latched (roughly 90% of cases): the airbag module briefly saw low system voltage during a cold crank, a jump-start, a failed Component Protection write, or a weak/dying battery, failed its internal self-test, and wrote 65535 as a “something went wrong” latch. The module hardware is fine — it just needs the latch cleared. This is especially common after winter crank attempts, battery changes, long-stored vehicles, Component Protection re-coding attempts that dropped voltage, and dealer battery disconnects.
• Hardware-defective (roughly 10% of cases): EEPROM corruption, a failed internal IC, or an acceleration-sensor fault — the module really is internally damaged and needs replacement.

We can’t always tell which one you have until after the reset. What we do: read the EEPROM, back it up, clear the 65535 latch, write the corrected image, and bench-test. Once you reinstall with a healthy battery, two outcomes are possible — the light stays off (software-latched, fully fixed), or the 65535 returns within hours or days (hardware-defective, module truly needs replacement). Best-practice aftercare for a software-latched 65535: always crank with a strong battery, never jump a dead pack without a voltage-stabilizing tool, and replace a tired battery before it drops under 11.5 V on crank.

Why Karmanauto for VW resets

• 25+ years repairing automotive electronics — VAG-family airbag modules since the early Continental / Temic generation
• Airbag-module and ECU tutorials on our YouTube channel (@vehix411) since 2009
• Automotive-school instructor background — we know what the module is doing and why
• We handle both scenarios on one bench — crash lockout and 65535 — same flat price
• Worldwide mail-in service — we reset modules for customers in any country; customer pays return shipping at checkout
• Read-and-reset guarantee — we save a full EEPROM dump of your module before and after the reset. If anything comes up, we can re-check the module from our saved files and re-work it — no data is ever lost.
• No VCDS / ODIS / GeKo / SVM / dealer coding required after reset — plug it back in, key on, light out

When you need a VW airbag reset

• Post-accident airbag light on and VCDS / ODIS / OBDeleven won’t clear the codes
• Bought a salvage / auction / rebuilt-title VW and the airbag lamp is latched on
• VCDS shows fault 65535 “Internal Control Module Memory Error”
• Airbag light came on after a battery replacement, jump-start, or cold morning
• Dealer quoted $700–$1,400 for a new module plus SVM / long-coding / Component Protection
• Used / junkyard module you want reset to your build before install
• Component Protection failed mid-coding and the module latched 65535

VW airbag module part number families

VW airbag control unit part numbers follow the VAG convention: a three-character platform prefix, the family stem 959-655 (newer MQB / MLB-Evo / MEB) or 909-605 (older PQ25 / PQ35 / PQ46), and an A–Z revision suffix. Common VW families we reset daily:

• 5Q0-959-655 (Golf Mk7 / Mk7.5, Jetta Mk7, Tiguan MQB, Atlas, Passat B8 early) 2013–2021
• 3Q0-959-655 (Passat B8, Tiguan MQB, Arteon, Atlas Cross Sport) 2015–present
• 5H0-959-655 (Golf Mk8, ID.3, ID.4, ID.5, ID.7, ID. Buzz — MQB-Evo and MEB) 2020–present
• 17A-959-655 (Jetta Mk7 A7, Taos, Tharu) 2019–present
• 11A-959-655 (Polo Mk6, Virtus, T-Cross) 2017–present
• 5C0-959-655 (Beetle A5, Jetta Mk6) 2011–2019
• 1K0-909-605 (Golf Mk5 / Mk6, Jetta Mk5 / Mk6, Tiguan 5N early, Passat B6) 2004–2013
• 3C0-909-605 (Passat B6, Passat B7, Passat CC first gen) 2005–2015
• 7P0-959-655 (Touareg Mk2 7P, Touareg Hybrid) 2010–2018
• 760-959-655 (Touareg Mk3 CR) 2018–present
• 7L0-909-605 (Touareg Mk1 7L — Continental/Siemens variant) 2002–2010

If your label doesn’t match any of the above exactly, send a photo of the module sticker — we process the entire VW airbag module family plus every VAG sibling (Audi, Škoda, SEAT, CUPRA) and work across all the internal supplier variants: Continental / VDO / Siemens, Bosch, TRW/ZF, Autoliv, and Temic.

Models covered — by family

Common post-deployment DTCs on VW airbag modules

After a collision or during a latched-65535 condition, VCDS, ODIS, and OBDeleven will typically return a set of codes that refuse to clear until the bench reset is done. Typical VW airbag DTCs we see on the bench:

• 65535 — Internal Control Module Memory Error
• 00532 — Supply Voltage B+ (low-voltage latch during crank or CP coding)
• 01217 — Side Airbag Igniter; Driver Side (igniter-resistance latch)
• 01218 — Side Airbag Igniter; Passenger Side
• 01220 — Airbag Crash Sensor; Driver Side
• 01221 — Airbag Crash Sensor; Passenger Side
• 01304 — Radio (Component Protection CP lockout after module swap)
• 01423 — Side Airbag Igniter; Rear Driver Side
• 01424 — Side Airbag Igniter; Rear Passenger Side
• 01796 — Crash Signal, Unplausible
• 02526 — Supply Voltage Terminal 30 — Signal too Low
• 02632 — Driver Side Belt Tensioner Igniter — Resistance Too High
• 02633 — Passenger Side Belt Tensioner Igniter — Resistance Too High

What the reset clears — and what it doesn’t

Golf / GTI / R (Mk5 – Mk8)

Golf Mk5 and Mk6 run the 1K0-909-605 family with a Continental/Siemens airbag module; Mk7 and Mk7.5 move to 5Q0-959-655 on the MQB platform; Mk8 steps up to 5H0-959-655 on MQB-Evo. All four generations share the same post-crash behavior — hard crash flags, Component Protection lockout, and no ODIS clear. Most common cause on our bench: low battery during a DSG / 7-speed re-adaptation or a cold winter crank that drops voltage briefly, latching 65535. GTI, R, and R32 use the same airbag modules as the base Golf — there is no performance-specific airbag variant.

Jetta / GLI (Mk5 – Mk7)

Jetta Mk5 and Mk6 share the 1K0 / 5C0 airbag families with Golf and Beetle; Jetta Mk7 (A7) moves to 17A-959-655 on the MQB platform built in Puebla. GLI uses the same module as the standard Jetta. Common cause: failed Component Protection write after a module swap — the airbag latches 65535 when the online SVM session drops.

Passat / CC / Arteon (B6 – B9)

Passat B6 and B7 use the 3C0-909-605 Continental airbag module; Passat B8 and CC move to 3Q0-959-655; Arteon uses the same 3Q0-959-655 family. Passat B9 (current Euro model on the MQB-Evo) is covered under the 5H0-959-655 family. All Passat generations share the same bench-reset procedure — the module lives under the center console on the transmission tunnel, accessed by removing the shifter surround.

Tiguan / Taos

Tiguan 5N (first gen, 2008–2017) uses the 1K0-909-605 family; Tiguan second gen (AD1 / BW2, MQB platform, 2017–present) moves to 5Q0-959-655 or 3Q0-959-655 depending on market and model year. Taos uses the 17A family. Tiguan Allspace shares modules with the standard Tiguan.

Atlas / Atlas Cross Sport

Atlas and Atlas Cross Sport both run on the 3Q0-959-655 and 5Q0-959-655 MQB airbag families — supplier split between Continental and Autoliv depending on build year and Chattanooga line run. Teramont (the Chinese-market Atlas equivalent) uses the same modules.

Touareg (Mk1 – Mk3)

Touareg Mk1 7L (2002–2010) is on the Continental/Siemens 7L0-909-605 family; Touareg Mk2 7P (2010–2018) moves to 7P0-959-655; Touareg Mk3 CR (2018–present) runs the 760-959-655 module on the MLB-Evo platform shared with Audi Q7 4M and Porsche Cayenne. Touareg is the one VW where the airbag module location shifts by generation — Mk1 is under the driver seat, Mk2 and Mk3 move under the center console on the tunnel.

Beetle & Convertible

New Beetle 9C (1998–2010) and Beetle A5 (2011–2019) use the 1K0-909-605 and 5C0-959-655 airbag families respectively. Beetle Convertible shares the A5 module. Eos uses the same 1K0 / 3C0 modules as the B6/B7 Passat. Common cause: Beetle owners with long-stored cars whose batteries discharged over winter — the 65535 latch sets on the first crank attempt.

ID. EV family (ID.3 / ID.4 / ID.5 / ID.7 / ID. Buzz)

The full VW ID. EV lineup runs on the MEB platform with the 5H0-959-655 airbag control unit family — shared with Golf Mk8 and the Škoda Enyaq. The high-voltage drivetrain is irrelevant to the airbag reset procedure — the SRS module is still a standard 12 V unit on the low-voltage network. Do note: disconnecting the 12 V auxiliary battery on an ID. vehicle has the added quirk of triggering a service-mode handshake on the HV system; follow VW’s service manual for HV-safe battery disconnect before pulling the airbag module. The bench reset itself is identical to a Mk8 Golf.

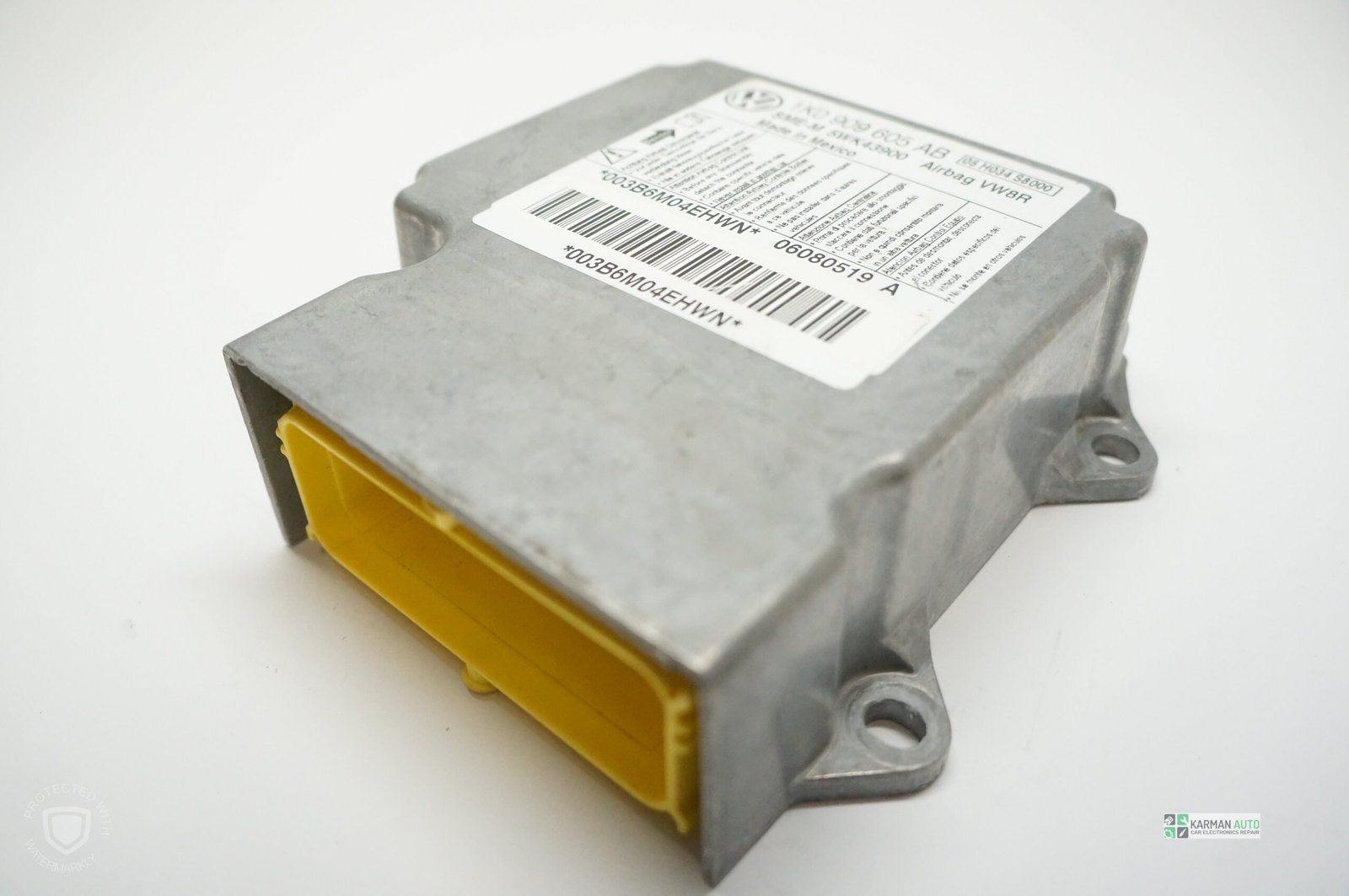

Where the VW airbag module lives on your car

On every modern VW from Golf Mk5 onward, the airbag control unit is bolted to the transmission tunnel under the center console, between the front seats, right in front of the shifter. Access path:

1. Disconnect the battery and wait 10 minutes for the airbag capacitor to bleed down.
2. Pop the shifter-trim surround (on DSG and manual cars the shift boot lifts out from the rear edge).
3. Remove the cup-holder insert and two Torx screws at the front of the console.
4. Unclip the center console side trims (one plastic clip per side, pull straight up).
5. Slide the console rearward slightly — the airbag module is now visible, a small aluminum or plastic-cased box with one yellow multi-pin connector.
6. Push down the connector’s yellow lock slider, then lift the connector off the module.
7. Remove the two or three mounting bolts (T30 or 10 mm) and lift the module out.

Exception: Touareg Mk1 7L only — the module is under the driver seat on that generation. Every other VW (Golf / Jetta / Passat / Tiguan / Atlas / Arteon / Beetle / Touareg Mk2 / Touareg Mk3 / ID. family) uses the center-console / transmission-tunnel location.

The reset process (what we do on the bench)

1. Inspect and log. Label your module, photograph the part-number sticker, record the EEPROM revision.
2. Read before. Connect directly to the EEPROM and save a full pre-reset image to our archive — this is the “before” half of the read-and-reset guarantee.
3. Identify the condition. Check the crash-data block, Component Protection lockout bits, and the 65535 internal-error latch.
4. Clear. Wipe the crash flags and event data, clear the 65535 latch, recompute EEPROM checksums.
5. Write back. Flash the corrected image with VIN, long coding, adaptations, and CP preserved.
6. Read after. Save the post-reset EEPROM image alongside the pre-reset image in our archive.
7. Bench check. Power up on the bench, confirm the module responds clean and the fault-code memory is empty.
8. Package and ship. Anti-static wrap, padded box, same-day return USPS Priority or expedited if you’ve provided a pre-paid overnight label.

Post-reset install check

After you plug the module back into the harness and reconnect the battery, key to ON (not crank). Expected behavior: airbag light illuminates for 4–6 seconds during the lamp-check sequence, then goes out and stays out. If the light stays on, run VCDS or OBDeleven and read the airbag module — if you still see a 65535 code, the module is hardware-defective and we’ll work with you under the read-and-reset guarantee. If you see igniter-resistance codes (01217, 01218, 02632, 02633, etc.), check the squib connectors under the seats and steering wheel — connectors get bumped during module removal.

Guarantee & shipping

• Read-and-reset guarantee — we save a full EEPROM dump of every module before and after the reset. If anything comes up, we can re-check the module from our saved files and re-work it — no data is ever lost.
• Same-day turnaround — modules that arrive in-by-noon Pacific usually ship back the same afternoon.
• Return shipping via USPS — return label is pre-paid by the customer at checkout on our site.
• Expedited return (overnight / 2-day) only if the customer provides their own pre-paid expedited label.
• See our return policy for full terms.

People also search for

VW airbag module reset, Volkswagen SRS reset, VW 65535 fix, VW airbag code 65535, VCDS won’t clear airbag light, Golf airbag module repair, Jetta airbag control unit, Passat SRS reset, Tiguan airbag reset service, Atlas airbag control unit, MQB airbag module 5Q0 959 655, 3Q0 959 655 reset, 1K0 909 605 airbag module, 5H0 959 655 ID.4 airbag, Touareg 7P0 airbag, Volkswagen crash data erase, Component Protection reset VW, salvage title VW airbag reset, post-accident VW airbag repair, bench EEPROM airbag reset Volkswagen, VAG family airbag module repair.

Quick answers

Will VCDS clear a VW airbag crash code? — No. Neither VCDS, ODIS, OBDeleven, VCP, nor any other scan tool can clear a crash-lockout or a latched 65535. A bench EEPROM reset is required.

Do I need to send the airbags too? — No — only the airbag control module (the small box under the center console). Never mail an undeployed airbag, pretensioner, or squib — those are hazmat.

Is Component Protection preserved? — Yes. We leave VIN, long coding, adaptations, and Component Protection untouched. Plug-and-play back into your car.

How long does it take? — Same-day turnaround once your module is in our hands. Round-trip shipping is usually 3–5 business days.

Do you reset ID.3 / ID.4 / ID.7 airbag modules? — Yes, the full VW ID. EV lineup uses the 5H0-959-655 airbag module on the MEB platform — same bench procedure as a Golf Mk8.

Frequently asked questions

How long does the VW airbag module reset take?

Same-day bench turnaround from the moment your VW module arrives at our shop. Most customers are back on the road within 3–5 business days end-to-end, including shipping both ways.

Will the airbag light stay off after you reset my VW module?

If the module is software-latched (about 90% of cases), yes — the light goes out on the first key-on after reinstall and stays off. If the module is hardware-defective (about 10%), the 65535 latch will return and the module needs physical replacement. Our read-and-reset guarantee means we save a full EEPROM backup before and after every reset, so we can always verify what happened.

Do I need to send the airbags too, or just the VW control module?

Just the control module — the small SRS / Airbag ECU box under the center console. Do not ship any undeployed airbags, pretensioners, or side curtains. Those are hazmat and cannot legally go through the mail.

How do I know if my VW part number is supported?

Email us a photo of the label on your VW airbag module before you ship. We confirm support and part coverage within the hour during business days. If we cannot reset your specific unit, you will not be charged.

What shipping carrier should I use?

Ship to the address printed on your order receipt — that address is the one current for your order. USPS Priority is the most common choice; UPS Ground and FedEx Ground also work. Please do not use any carrier address you found online without confirming against your receipt.

Can you reset a VW airbag module from a salvage-title or auction car?

Yes. Salvage, rebuilt, auction, and parts-car modules are about 30% of our VW bench volume. We clear the crash data from the previous owner’s collision, erase the deployment flags, and return the module ready to install in your build.

Do you need the VIN to reset my VW airbag module?

No — the reset is a direct EEPROM operation on the physical module. The VIN stays in the module untouched; we do not write a new VIN or alter Component Protection.

Will I need a VCDS or ODIS coding session after the reset?

No. The module goes back plug-and-play — key on, airbag light does its 4–6 second lamp check, then goes out. No dealer scan tool, no SVM, no online coding required.

What does the 65535 code actually mean on a VW?

65535 is the VW “Internal Control Module Memory Error” latch — the airbag module decided during a self-test that it may be internally defective and refuses to continue. Most commonly triggered by low battery voltage during a cold crank, a failed Component Protection coding session, or a dealer battery disconnect.

Does the reset work on an ID.3 / ID.4 / ID.7 or ID. Buzz?

Yes. The ID. EV family uses the 5H0-959-655 airbag control unit on the MEB platform. The bench reset is identical to a Mk8 Golf or Škoda Enyaq — the high-voltage drivetrain does not touch the SRS module.

Can Component Protection cause a 65535 latch?

Yes — failed or interrupted CP coding (low battery during the online SVM session is the usual trigger) is one of the top causes of a latched 65535 on Golf Mk7+, Passat B8, Tiguan MQB, and the ID. family.

What’s the difference between VW 65535 and the generic OBD-II 65535?

Generic OBD-II 65535 just means “no code present” (0xFFFF in the diagnostic byte). VW’s 65535 is the brand-specific Internal Control Module Memory Error latch stored in the airbag module’s own fault memory — it reads in VCDS as a persistent error even though a generic scan tool sees nothing.

Is the reset legal?

Yes. Resetting your own airbag module after a collision or latched-error event is legal in the US and every other jurisdiction we ship to. The customer is responsible for confirming that every fired squib (airbag, pretensioner, side curtain) is replaced before the vehicle is driven.

How many miles does the VW airbag module record?

The airbag module stores crash events with a mileage stamp in the event-data record. Our bench reset wipes that record along with the deployment flags — mileage in the instrument cluster is separate and unaffected.

Do you reset Škoda, SEAT, CUPRA, or Audi airbag modules too?

Yes. The full VAG family — VW, Audi, Škoda, SEAT, CUPRA, and select Bentley / Lamborghini / Porsche platforms — shares the xxx-959-655 and xxx-909-605 airbag module families. We bench-reset all of them. See our dedicated Audi airbag module reset page for Audi specifically.

What if my VW module is hardware-defective and needs replacement?

If the 65535 latch returns within hours or days of reinstall, the module is hardware-defective. Under our read-and-reset guarantee we verify the pre- and post-reset EEPROM images on file. A hardware-defective VW airbag module must be physically replaced; any used/junkyard replacement of the same part number family can come back to us for a pre-install bench reset.

How should I pack the module for shipping?

Anti-static bag or bubble wrap around the module, then into a small padded box or heavy-duty padded envelope.

Related Karmanauto services

• Audi airbag module reset & 65535 repair — same VAG family, same bench procedure
• All airbag module reset services — every make we reset
• Contact / custom quote — part-number questions, overnight returns, or anything not on standard list

See a reset on YouTube

Bench crash-reset walkthrough on our @vehix411 YouTube channel. Same process across every VW airbag module — including 65535 fault recovery.

Our VW Volkswagen airbag module reset service clears stored crash data and the 65535 error code from the airbag control module on Golf, Jetta, Passat, Tiguan, Touareg, Polo, and other VW vehicles. We remove the 65535 fault, reset the module to a virgin state, and return it ready for re-installation so the airbag light turns off. Coverage spans VW Volkswagen airbag modules across model years where the 65535 reset is the documented fix path for stored crash data.
