Subaru ECU Tune Clone — Tune, Key & VIN Transfer
$250.00
KEY, VIN AND TUNE FLASH FILE.
Can you clone a Subaru ECU (Engine Control Unit)?
Yes. Karman Auto clones all Subaru ECUs nationwide by mail-in across Legacy, Outback, Forester, Impreza, WRX, STI, Crosstrek, BRZ, Ascent, and Tribeca from 2000-2020. We support Denso, Hitachi, and Bosch ECUs in metal or plastic cases. We read VIN, key data, immobilizer pairing, OEM tune file (flash), and EEPROM coding from your original ECU and write all of it 1:1 to a matching donor — returns 100% plug-and-play. No SSM, no dealer programming, no online subscription. BBB A+ Rated, 27 years bench-level work since 1999.
Subaru ECU types — Denso vs Hitachi vs Bosch
Subaru used three main ECU manufacturers across 2000-2020 model years. Each requires a slightly different cloning approach, but Karman Auto supports all three:

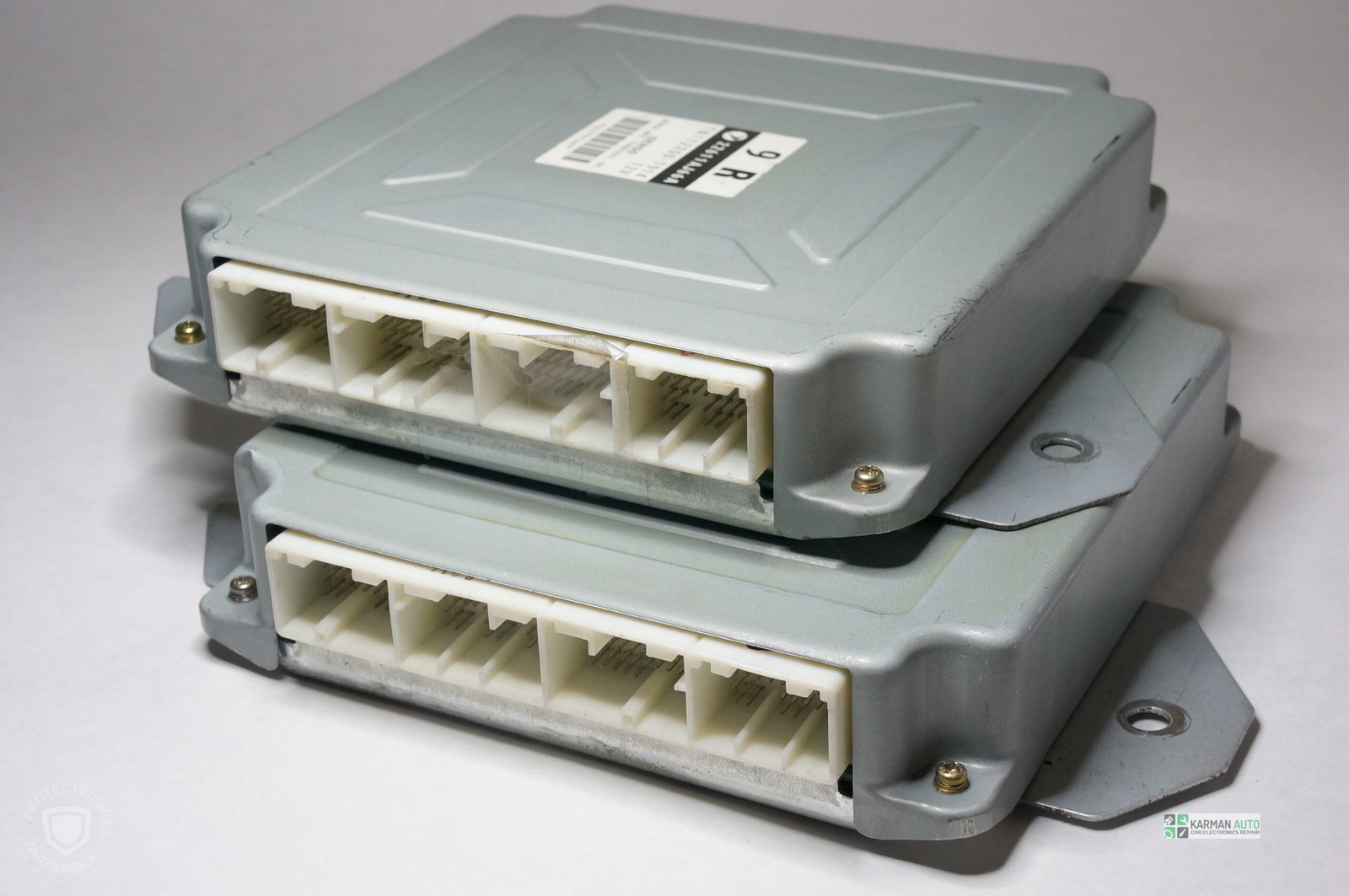

- Denso ECUs (metal case) — most common on naturally-aspirated 2.0L and 2.5L engines 2000-2014. Internal Renesas SH7058 / SH72531 microprocessor. Dedicated Denso ECU clone service page.
- Hitachi ECUs (metal case, larger connector) — common on turbo WRX/STI and some non-turbo from 2002-2018. Dedicated Hitachi ECU clone service page.
- Bosch ECUs — used on some 2015+ models (Crosstrek, Forester) and high-performance variants. Cloned at chip level.
If you’re not sure which type of ECU you have, send us a photo of the ECU case label and we’ll identify it before you ship.
Common Subaru ECU failure symptoms
- Engine won’t start — security light flashes, immobilizer fault
- Check Engine Light (CEL) with multiple non-related codes
- Engine cranks but no spark or fuel pulse
- Random misfires, P0301-P0304 across all cylinders
- Subaru-specific codes P1507 (IAC), P1518 (immobilizer), P1574 (CAN bus)
- Engine stalls at idle or under light load
- Communication failure on OBD-II — scan tool can’t connect to ECU
- Battery drain — ECU stuck “awake” pulling current overnight
- Water damage symptoms (corroded pins, green corrosion on circuit board)
- “Check Engine + AT Oil Temp” lights flashing together (early 2000s Legacy)
What causes Subaru ECU failures?
- Water damage / flood — Subarus driven in winter conditions or hit by flooding develop ECU corrosion. We see this most on Outback and Forester in snow-belt states
- Capacitor failure — electrolytic capacitors on 2002-2010 Denso ECUs leak over time, killing the unit
- EEPROM corruption — repeated low-voltage cranking events corrupt the immobilizer pairing or tune file
- Failed dealer reflash — interrupted SSM reprogramming during service can brick the ECU
- Failed aftermarket tune flash — bad OpenECU / AccessTuner / RaceROM flash attempts
- Battery jump-start surges — voltage spikes during jump-starts damage internal regulators
- Accident damage — collision can break solder joints or crack the case
Supported Subaru models and year ranges
- Legacy / Outback — 2000-2020 (all generations BE/BH, BL/BP, BM/BR, BN/BS chassis)
- Forester — 2000-2020 (SF, SG, SH, SJ, SK chassis)
- Impreza / WRX / STI — 2000-2020 (GC, GD, GE, GH, GR, GP, GV chassis)
- Crosstrek / XV — 2013-2020
- Ascent — 2019-2020
- BRZ — 2013-2020 (joint with Toyota 86)
- Tribeca — 2006-2014
- Baja — 2003-2006
Clone vs IMMO Off vs Flash Transfer — which Subaru ECU service do I need?
Three different mail-in services depending on what your situation needs:
- Clone (this page) — your ECU is failing or you’re installing a used donor ECU. We copy ALL data (VIN, keys, tune, EEPROM) from your original to the donor. Returns Plug-and-Play with existing keys.
- IMMO Off — remove the immobilizer routine entirely so the ECU runs without paired keys. Used for swaps, lost-all-keys situations, or motor swaps. DENSO SH72531 IMMO Off page · DENSO SH7058 IMMO Off page.
- VIN Programming only — your ECU works fine, but you need a different VIN written to it (used ECU from a different car). Subaru ECU VIN Programming page.
No Subaru SSM, dealer programming, or coding required after install
Once we clone your data onto the donor ECU, the replacement is fully matched to your VIN, immobilizer, and configuration. You install it the same way you’d install any other Subaru module. There is no dealer-side step. No Subaru SSM4 (Select Monitor 4). No dealer J2534 reflash. No transponder programming. Your existing keys keep working — the immobilizer pairing is preserved in the clone.
What to send with your Subaru ECU clone order
- Your original (failed) Subaru ECU — labeled “ORIGINAL”
- A matching donor ECU with the exact same Subaru part number on the case label — labeled “DONOR.” Subaru ECU part numbers are formatted like 22611-AX###. Mismatched part numbers cannot be cloned together.
- A note with your VIN, current vehicle mileage, and contact phone or email
If you’re unsure whether your donor part number matches, email a photo of both module labels before shipping and we’ll confirm compatibility first.
Karman Auto Subaru ECU service — frequently asked questions
Can you clone any Subaru ECU (Engine Control Unit)?
Yes. Karman Auto clones every Subaru ECU from 2000 through 2024 — Denso, Hitachi, and Bosch units across Legacy, Outback, Impreza, WRX, STI, Forester, Crosstrek, BRZ, Tribeca, and Ascent. We have been doing bench-level Subaru ECU work since 1999 — 27 years, longer than any active US Subaru ECU service. BBB A+ accredited.
What does Subaru ECU cloning actually do?
We read your original ECU’s full internal flash and EEPROM — VIN, mileage, immobilizer pairing data, coding flags, idle/fuel learn values, and any aftermarket or OEM tune — and write that exact data into a matching donor ECU. The donor becomes your original module electronically. Install it and the car starts. No SSM-IV, no dealer programming, no tune lost.
How long does a Subaru ECU clone take?
Typical bench turnaround is 24-48 hours from when we receive both ECUs. We ship back via USPS Priority the same day cloning is complete. Most customers see the cloned ECU back in 5-7 days door to door. 27 years of refining this process — no faster bench service exists in the US.
Will my Subaru keys still work after the ECU clone?
Yes. The Subaru immobilizer pairing data is stored inside the ECU EEPROM (or shared between ECU and BIU on 2008+ models). We copy that data byte-for-byte to the donor, so every key that worked before the clone keeps starting the car afterward. No relearn, no programming. 27 years of immobilizer work means we know every variant.
Does the OEM or aftermarket tune transfer over during the clone?
Yes. The full flash file including tune data is cloned. If you have an OEM tune the donor receives the same OEM tune. If your original has an aftermarket tune (COBB AccessPort, EcuTek, OpenECU) we clone that tune over too — assuming the original flash is intact. We have been preserving aftermarket tunes through clones since the COBB AccessPort first shipped.
Do I need a donor Subaru ECU or can I just send my failed one?
ECU cloning requires a donor ECU with the same part number as your original. If you do not have one we can usually source one — message us with your part number first. We have been sourcing OEM Subaru donor ECUs since 1999 and maintain working relationships with US dismantlers nationwide.
Why does the donor Subaru ECU need to match the part number exactly?
The internal flash layout and EEPROM map are tied to the ECU part number. A donor with a different part number has a different memory map and cannot accept the cloned data correctly. The number is printed on the white sticker — verify before shipping. We have refused mismatched ECU jobs for 27 years to protect customers from no-start failures.
What are the symptoms of a failing Subaru ECU?
Common Subaru ECU failure signs include intermittent no-start, immobilizer light flashing with key in ignition, random misfires, MIL/CEL on with no consistent code, idle hunting, transmission shift quality degradation (on automatics), CAN/K-line communication errors, and fault codes P0606 (ECM processor fault), P0607 (ECM performance), P1517, U0001, U0100. 27 years of failure pattern recognition behind every diagnosis.
What causes Subaru ECU failure?
The leading cause is water intrusion on Outback and Forester models (firewall ECU mounting allows leaks from the cowl). Other causes include jump-start over-voltage, alternator regulator failure dumping over-voltage to the ECU, internal capacitor degradation (especially Denso boards 2008-2015), bricked reflashes from failed dealer SSM updates, and accident damage. 27 years of bench-level failure analysis informs every recovery.
Does the Subaru ECU clone require SSM, dealer programming, or coding?
No. The whole point of cloning is that no dealer step is needed. Programming a new Subaru ECU the conventional way requires Subaru SSM-IV plus a Subaru Tech Info subscription, which costs thousands per year. Karman Auto bypasses that entirely — install our cloned ECU and the car starts.
Can you recover a Subaru ECU bricked by a failed reflash?
Yes. We can usually recover bricked ECUs by reading the EEPROM and flash directly at chip level and rewriting a known-good OEM file. Send it in and we will diagnose at no charge — only proceed with recovery on your approval. This is exactly the kind of work 27 years of bench experience makes possible.
Will the odometer reading change after the ECU clone?
No. On most Subaru models the odometer actually lives in the combination meter and BIU, not the ECU — so the ECU clone does not touch it at all. Even on models where the ECU stores mileage we transfer it exactly. Karman Auto does not roll back or alter mileage under any circumstance — same policy since 1999.
Does the Subaru ECU clone work on WRX, STI, BRZ, and STI sti?
Yes. WRX and STI use Hitachi ECUs, BRZ uses a Denso ECU. Both are fully clone-able with the same 24-48 hour bench turnaround. We preserve tune, VIN, mileage, and immobilizer pairing on every chassis. 27 years across every Subaru platform.
Can you clone a Subaru ECU that will not communicate (totally dead)?
Yes. Even when the ECU will not respond to a scan tool we can still read the EEPROM and flash directly at chip level on the bench. That is how we recover VIN, mileage, key data, and tune from completely dead Subaru ECUs. 27 years of chip-level work makes this routine, not exceptional.
Why choose Karman Auto over UpFix, Clone Garage, Mk-Ultra Electronics, or any other Subaru ECU service?
We have been doing bench-level automotive electronics since 1999 — 27 years, longer than any active US Subaru ECU competitor. BBB A+ accredited. 5.0/304 customer reviews. Free YouTube tutorials on Vehix411 (5,168+ videos covering this exact work). Lifetime warranty on every ECU clone. 24-48 hour bench turnaround. We have outlasted every Subaru ECU shop that tried this work — that is what 27 years buys you.
27 years bench-level experience — proven on YouTube
Karman Auto has been cloning Subaru ECUs, BIUs, combination meters, and immobilizer modules at the bench level for 27 years. Our VEHIX411 YouTube channel documents real bench work on real customer Subaru ECUs — proof of how long we’ve been doing this. When you ship your Subaru ECU to Karman Auto, you’re sending it to the same hands other shops learn from.
Subaru ECU Tune + Key & VIN Clone (2000–2020)
Nationwide mail-in service to clone your Subaru ECU including Key data, VIN, and optionally TUNE/Flash. Perfect for owners replacing a faulty ECU or wanting a tuned ECU safely transferred to a matching donor ECU.
Most jobs completed within 24+ hours!
What This Service Includes
This full Subaru ECU clone service copies your Key data, VIN data, and Flash files (Tune) from your original ECU to a donor ECU.
Requirements:
- Original ECU from your vehicle
- Donor ECU with matching part number
- Payment and order/receipt clearly marked with ECU shipment
What is transferred:
- Key data for immobilizer synchronization
- VIN data
- TUNE flash if requested
Why this service exists: Subaru ECUs with tunes cannot rely on Key + VIN cloning alone. Transferring the flash ensures proper engine calibration, performance, and safe start-up.
Common ECU Issues We Solve
- No communication with ECU
- Persistent O2 sensor codes
- Camshaft / Crankshaft codes
- No crank, no start / Crank, no start
- Random or multiple engine codes
- Misfire codes
- Radiator fan blowing at full speed with no control
Supported Subaru Models (2000–2020)
B9 Tribeca · Baja · Baja Sport · BRZ · BRZ 2.0 Li · Crosstrek · Forester · Forester 2 · Forester L · Forester S · Forester T · GL · Impreza · Impreza 2 · Impreza L · Impreza Li · Impreza Outback · Impreza PR · Impreza RS · Impreza Sport · Impreza WRX · Justy · Legacy · Legacy 2.5 · Legacy 3.6 · Legacy AWD · Legacy Bri · Legacy GT · Legacy L/A · Legacy L/H · Legacy L/O · Legacy LS/ · Legacy Otb · Legacy Outback · Legacy Wag · LGcy Otbk · LGcy Otbk3 · Loyale · Outback · Outback 2.5 · Outback 3.2 · SVX L AWD · Tribeca · Tribeca Li · WRX · WRX Limited · WRX Premium · XT6 · XV Crosstrack

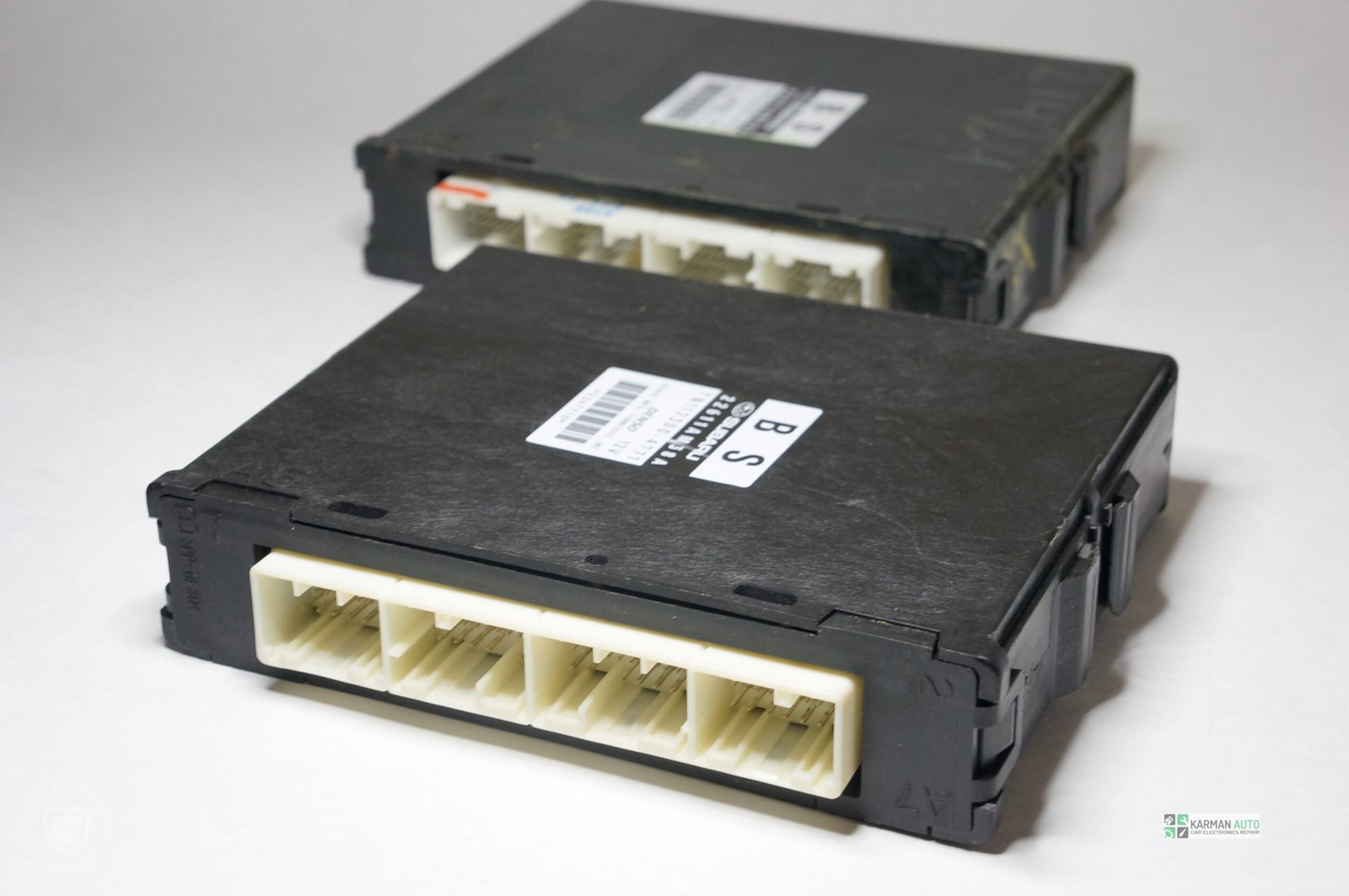

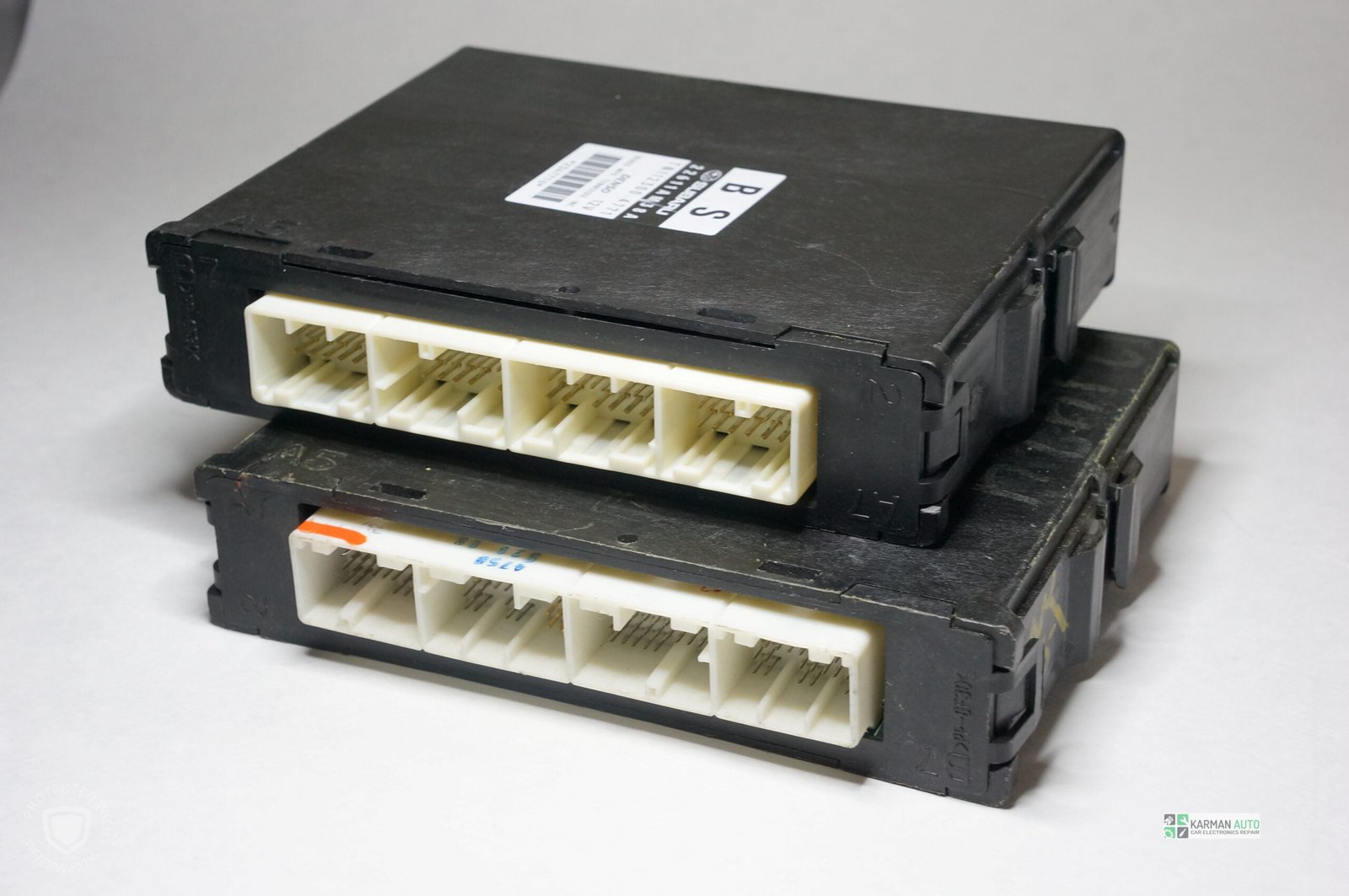

(Metal or black plastic ECU case)
How It Works
1. Add this Subaru ECU Clone service to your cart and complete payment.
2. Send your original ECU and donor ECU clearly marked with your order/receipt number.
3. Karman Auto will read your VIN, Key, and Tune data and clone it to the donor ECU.
4. Receive your fully cloned ECU ready to install.
Karman Auto guarantees the clone service. Guarantee does not cover the ECU supplied by the customer. Call or text 503-481-6575 for questions or assistance.
Frequently Asked Questions
Which Subaru years does this ECU clone cover?
Our Subaru ECU clone service covers 2000-2020 Legacy, Outback, Forester, Impreza, WRX, STI, Crosstrek, and Ascent with supported Denso, Hitachi, and Bosch ECUs.
Does the clone transfer the tune and factory flash?
Yes. We transfer the complete flash, EEPROM, VIN, and IMMO data, so the donor ECU behaves identically to the original and your keys continue to work.
Can you clone a Subaru ECU that will not start or communicate?
If the EEPROM is readable using bench tools, yes. We read directly from the chip and clone to a donor, which restores communication and starting.
Do you need the VIN and key?
The VIN helps us confirm the donor matches. A key is not required when the IMMO data is readable from the original ECU.
What is the turnaround on a Subaru ECU clone?
Typical turnaround is 24 hours at the bench after we receive the module, plus return shipping.
Watch the Bench Walkthrough
More bench walkthroughs are on our YouTube channel.
Watch how our bench service works
How our ECU clone service works. Bench demonstration on another vehicle — the read/write method is identical on your Subaru.
See our full Subaru ECU service guide: Subaru ECU Programming & Clone Service — full decision guide covers when to use ECU clone vs IMMO Sync vs VIN programming, and links to every specific Subaru service we offer.
